Can Carbon Fiber cloth, Thin as Cicada Wings, Truly Reinforce Buildings and Bridges? Unveiling the "Soft Overcomes Hard" Technology

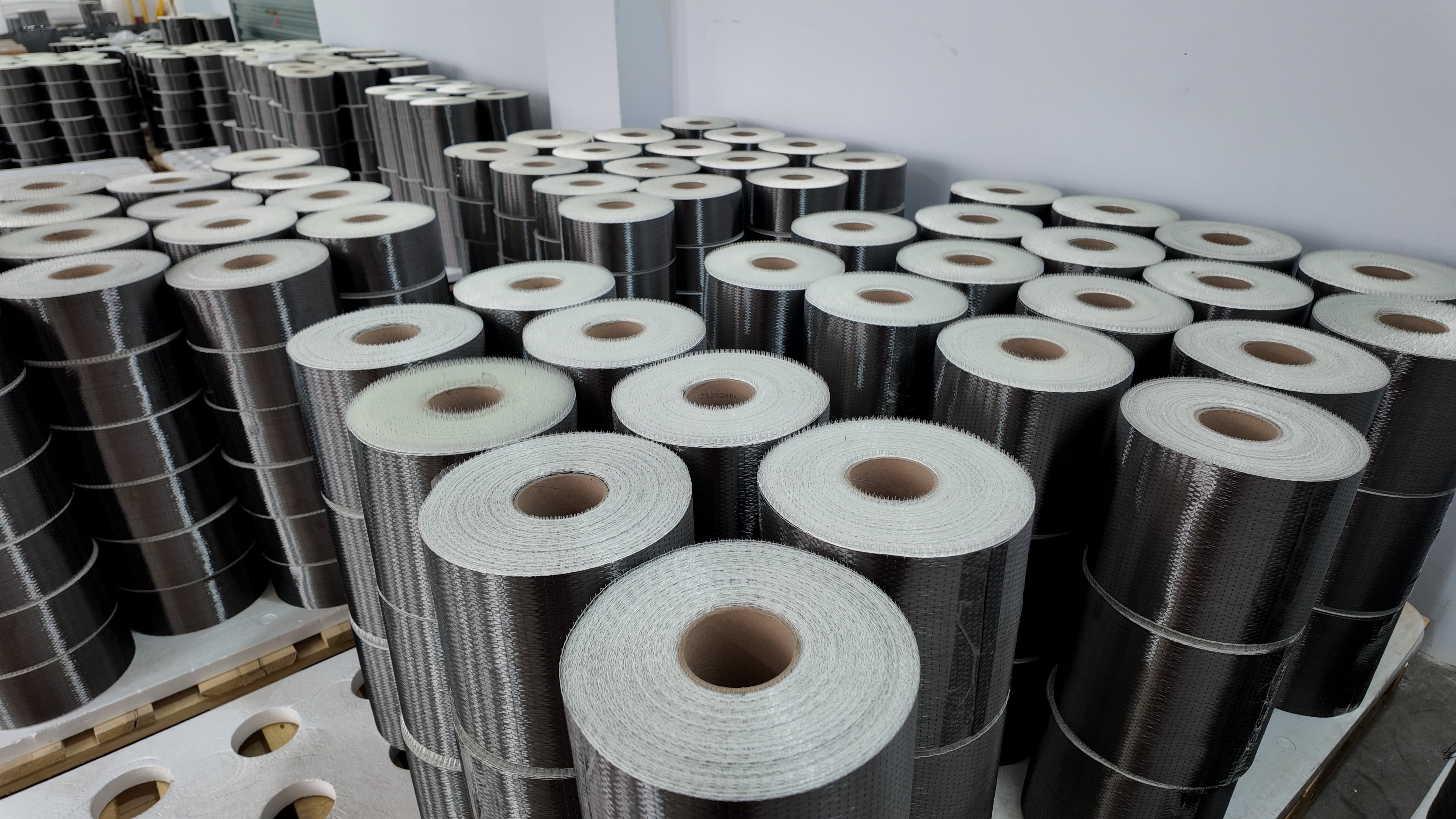

Carbon fiber fabric has become a preferred solution in modern building and bridge reinforcement due to its exceptional mechanical properties and convenient construction process. Visually lightweight and ultrathin—typically just 0.111 to 0.167 mm per layer—its powerful reinforcing effect stems from unique material characteristics and scientific reinforcement mechanisms.

I. Extraordinary Material Properties: The Perfect Blend of Strength and Lightweight

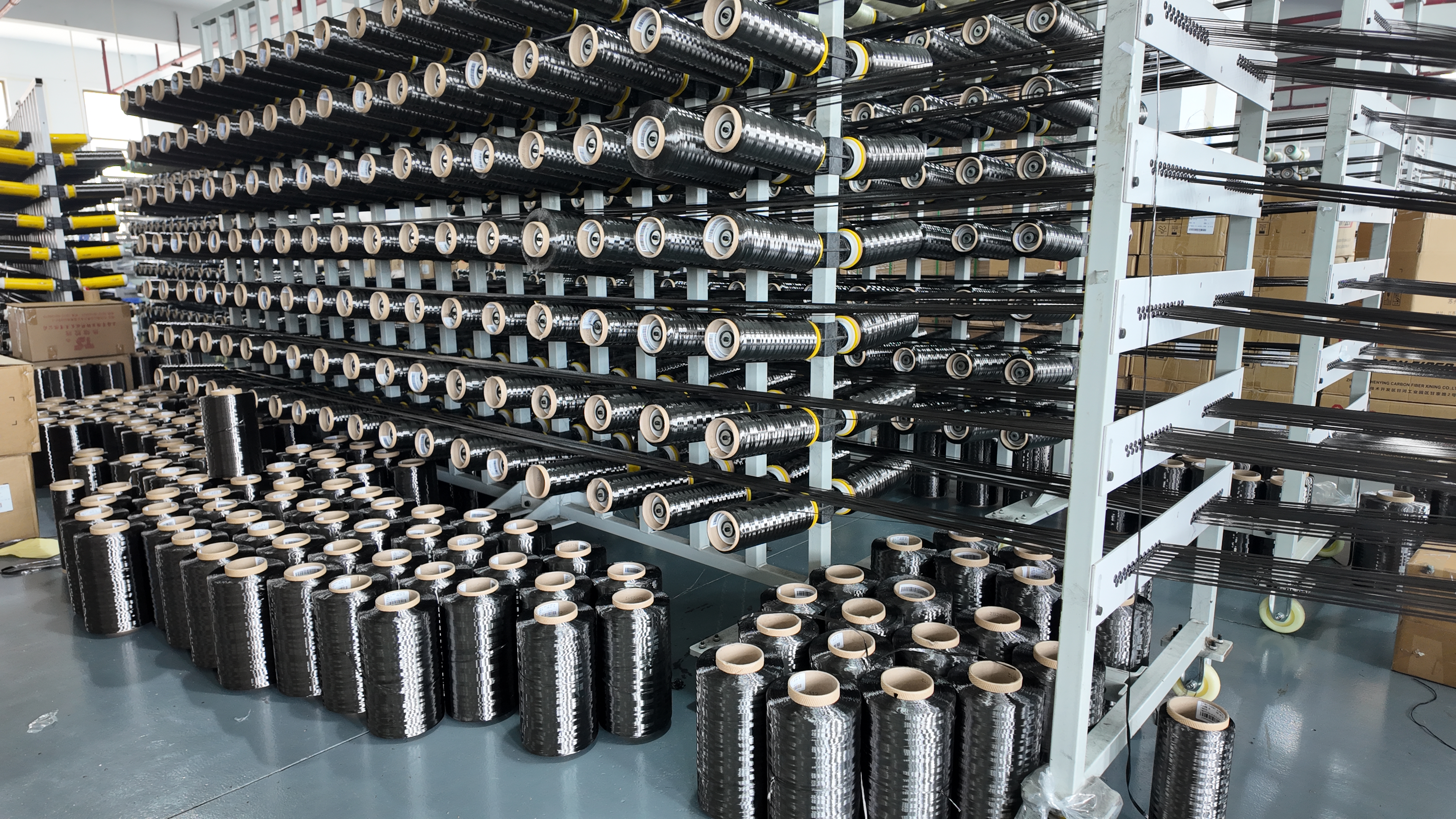

Microstructural Superiority: Carbon fiber is produced through high-temperature carbonization of raw materials like polyacrylonitrile (PAN). Its microstructure features carbon atoms arranged in tightly packed hexagonal lattices, forming ultra-high-strength chain structures along the fiber axis.

Strength Dominates Traditional Materials: A single carbon fiber is only 7-8 microns in diameter (≈1/10th of a human hair), yet boasts a tensile strength of 3,400–4,800 MPa (Chinese National Standard requires ≥3,000 MPa). This means a carbon fiber bundle the thickness of a pencil lead can withstand approximately 2 tons of tension (equivalent to the weight of 3 adult elephants)—over 6-10 times stronger than ordinary steel reinforcement (300–500 MPa).

Lightweight Efficiency: With a density of just ≈1.6 g/cm³ (about 1/4 that of steel), carbon fiber delivers far greater tensile load-bearing capacity per unit weight, adding negligible additional load to structures.

II. Scientific Reinforcement Principles: Directional Enhancement, Collaborative Force Transfer
The reinforcing power of carbon fiber fabric relies not on thickness, but on precise force direction design and seamless integration with the substrate:

Directional Tensile "Armor": Fibers are predominantly unidirectionally aligned. Applied along the structural member’s stress direction (e.g., tension zone at beam bottom, column axis), it directly and efficiently resists tension or shear forces, acting like a high-strength "tensile armor" for the structure.

Integrated Composite Action: Bonded with specialized epoxy resin adhesive, it forms a unified "substrate-adhesive-carbon fabric" composite system. External forces are effectively distributed and transferred, preventing localized failure due to stress concentration.

Key Performance Improvements:

Enhanced Tensile Resistance: For cracked beams/slabs, carbon fiber fabric can bear up to 70–80% of tensile forces, significantly inhibiting crack propagation and increasing ultimate load capacity (e.g., one overloaded floor slab saw a 40% capacity increase and stabilized cracks after application).

Improved Shear Resistance: Applied via "U-jacketing" or "full wrapping," it acts like a "high-strength strapping band" to confine lateral deformation, substantially boosting shear strength (tests show 50% shear capacity increase in columns with 2 layers).

Lightweight Advantage: Its extreme thinness (200–300 g/m² per layer) and minimal weight make it ideal for weight-sensitive scenarios like historic or aging structures, reducing added weight by 90% compared to steel plate reinforcement.

III. Proven Performance: Reliable & Efficient Engineering Solution
Carbon fiber reinforcement has been rigorously validated in demanding projects worldwide:

Bridge Seismic Retrofit: San Francisco-Oakland Bay Bridge used carbon fiber wrapping on piers for seismic upgrade, successfully withstanding the 2014 6.0-magnitude earthquake.

Building Upgrade: A 1980s Beijing office building increased floor load capacity from 2 kN/m² to 5 kN/m² by applying carbon fiber fabric to slabs—achieving modern functional requirements without structural demolition.

Post-Disaster Repair: After the 2008 Wenchuan earthquake, numerous damaged structures (e.g., beam-column joints in a school building) were restored with carbon fiber fabric, regaining up to 1.2x original design capacity and passing subsequent seismic inspections.

Conclusion: Strength Triumphs Over Thickness, Technology Empowers Reinforcement
The efficacy of carbon fiber fabric lies in its exceptional tensile strength, precise force-direction design, and synergistic integration with the substrate. Much like a thin steel wire can lift heavy weights—strength derives from material essence, not bulk. By "soft overcoming hard," it precisely addresses structural weaknesses in tension and shear, establishing itself as a highly efficient, reliable, and lightweight reinforcement solution in modern engineering.

This technology is codified in Chinese National Standards like GB50367: Design Code for Strengthening Concrete Structures and is a mature, scientifically validated methodology. As a trusted industry brand, Dr.Reinforcement carbon fiber fabric strictly adheres to ISO 9001 Quality Management Systems and complies with EU certification standards, having been successfully deployed in millions of projects globally—delivering performance you can rely on.
