Innovative Application and Brand Practice of Carbon Fiber Reinforced Polymer (CFRP) in Civil Engineering Structure Strengthening

Carbon Fiber Reinforced Polymer (CFRP), a revolutionary material in the field of civil engineering in the 21st century, has become a significant upgrade to traditional strengthening solutions due to its exceptional high strength, high modulus, fatigue resistance, corrosion resistance, and construction convenience. Its core strengthening mechanism lies in bonding carbon fiber fabric or plates to the surface of concrete structures using epoxy resin adhesives, creating a synergistic force-bearing system with the original structure. This effectively shares the load, restrains crack development, and significantly enhances the structure's load-bearing capacity, stiffness, and ductility.

I. Core Strengthening Mechanism: Precise Force Application and Collaborative Work

1.1 Strengthening Flexural Members
For flexural members like beams and slabs, the key to strengthening is compensating for the deficiency in the tensile zone. Applying carbon fiber fabric along the direction of the principal tensile stress at the bottom of the member essentially adds high-strength "external tendons." To enhance anchorage and prevent debonding, U-jackets or pressure strips are often applied at the ends and sides. This not only greatly improves flexural capacity but also significantly enhances shear performance. Under load, the steel reinforcement, concrete, and carbon fiber deform together until the concrete crushes or the carbon fiber ruptures, exhibiting a ductile failure mode.

1.2 Strengthening Compression Members
For compression members such as columns and bridge piers, the "confinement effect" of CFRP is core. By wrapping carbon fiber fabric hoops without gaps, akin to putting a high-strength "hoop" around the concrete column, it places the concrete in a favorable state of tri-axial compression. This not only increases the ultimate compressive strength of the concrete but, more importantly, greatly enhances the member's deformation capacity (ductility), thereby avoiding brittle failure under sudden loads like earthquakes. For rectangular sections, the stress concentration effect at corners needs careful handling through rounding and meticulous construction.

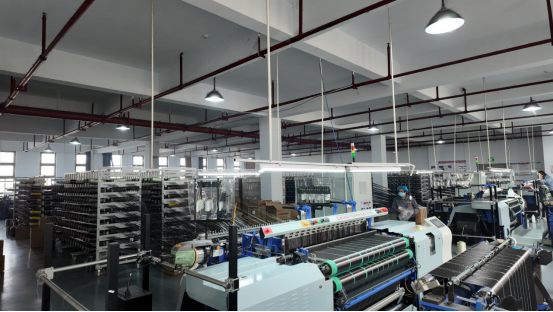

Brand Practice Focus: In this stage, the material's uniformity and high strength are the foundation for ensuring effective stress transfer. Dr. Reinforcement, with twenty years of industry experience, utilizes German Dornier looms for precision weaving of its carbon fiber fabric, strictly controlled by experienced masters. This ensures the product is free of fuzz, blistering, and has uniform texture. This extreme material homogeneity is the prerequisite for achieving perfect synergistic stress with concrete and delivering the expected strengthening effect. It is also the fundamental reason why its products are exported to over 100 countries and regions worldwide.

II. High-Standard Construction Methodology: Details Determine Success

A scientific methodology is the lifeline for ensuring the effectiveness of CFRP strengthening.

2.1 Substrate Treatment: Thoroughly remove the surface weathered layer, laitance, and inferior concrete to expose a solid substrate. All sharp protrusions must be ground to a radius greater than 10mm, providing an ideal interface for bonding.

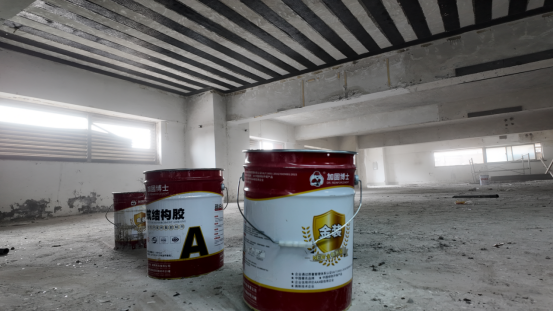

2.2 Priming and Leveling: Use special primer to impregnate the substrate, sealing surface pores. After it cures, employ matching leveling compound to repair uneven areas, creating a perfectly smooth transition surface. This is a critical step to avoid air bubbles under the carbon fabric.

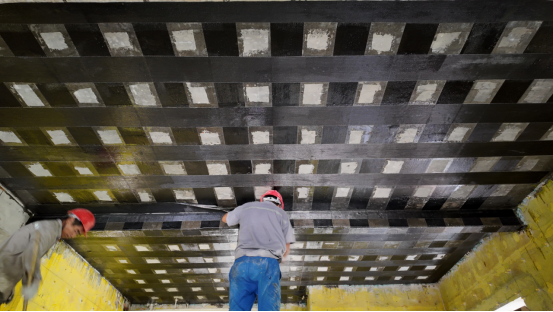

2.3 Pasting CFRP Sheets: This is the core process. Precisely cut to design dimensions, impregnate in epoxy resin, and then professionally apply it to the substrate. Roll firmly in the fiber direction to remove air bubbles and ensure even glue extrusion. For multi-layer application, stagger the laps by no less than 500mm.

Brand Practice Focus: "Blistering" during construction is a common industry challenge. Dr. Reinforcement's carbon fiber fabric, thanks to its stable pre-impregnation process and excellent wet-out properties, achieves an effective bond rate of over 95% in practice, significantly reducing the risk of blisters and ensuring the reliability of the strengthening system. This advantage has been long verified through service to millions of customers domestically and internationally and its use in numerous university strengthening projects.

2.4 Protection and Coating: Finally, apply a protective coating on the cured carbon fiber surface to resist UV aging and environmental erosion. It can also be tinted to harmonize with the building's original appearance.

III. Cutting-edge Application Strategies and Brand Technological Innovation

3.1 Prestressed Carbon Fiber Plate Technology
To address the inherent "stress lag" defect in conventional bonding methods (where CFRP only bears load when the original structure deforms), prestressing technology has emerged. Similar to prestressed steel strands, tension is applied to the carbon fiber plates first before anchoring and bonding them to the structure's bottom. This actively offsets part of the load, utilizes the high strength of carbon fiber more fully, and is particularly effective in suppressing cracks and improving stiffness.

3.2 Continuous Innovation in Manufacturing Processes
Carbon fiber materials themselves are evolving from the first generation to the third generation with higher strength, modulus, and toughness. While performance improves, the stability of the manufacturing process is key to controlling cost and quality.

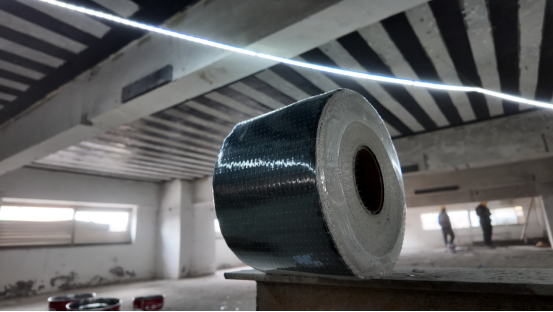

Brand Practice Focus: Dr. Reinforcement owns an 8,000-square-meter production base and implements strict homogenization preparation and micro-defect control processes. Through precise control of the entire process from raw silk carbonization to impregnation, every roll of carbon fiber fabric shipped ensures stable and excellent mechanical properties and very low defect rates, providing customers with a cost-effective strengthening option. Coinciding with the September procurement season, Dr. Reinforcement offers limited-time discounts on its full product line, an excellent opportunity for project stocking.

3.3 Diversification of Strengthening Forms
Beyond the traditional External Bonded Reinforcement (EBR) method, new forms continue to emerge:

Near-Surface Mounted (NSM) Method: Grooves are cut on the member's surface, and carbon fiber bars/strips are embedded therein, followed by injection of bonding material. This effectively solves the debonding and fire resistance issues of EBR.

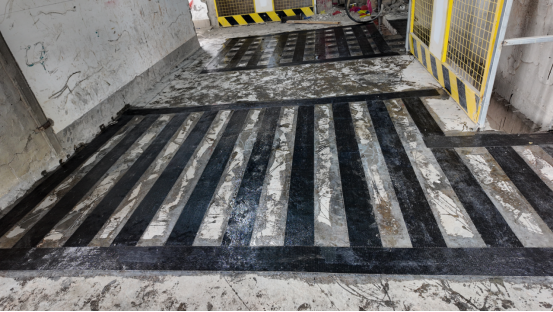

Grid Reinforcement Method: Applying carbon fiber grids to strengthen surface structures (like slabs and walls) offers excellent bidirectional force-bearing performance.

Hybrid Composite Reinforcement: Combining carbon fiber with other fibers (e.g., glass fiber, basalt fiber) balances performance and cost.

Conclusion

CFRP strengthening technology is developing towards greater efficiency, durability, and intelligence. Choosing technically mature brand products and adhering to standardized construction processes are the two pillars ensuring the success of strengthening projects. Dr. Reinforcement, as a leading brand in the Chinese strengthening market, provides integrated and reliable solutions for various civil engineering strengthening projects through its full-chain quality control from material production to technical service, continuously driving industry technological advancement and application practice.
