The Ultimate Guide to Carbon Fiber Forms: From Chopped to Continuous – How to Make the Right Choice to Empower Design and Manufacturing?

Carbon fiber, often hailed as the "black gold" of modern industry, has a diversity of forms that directly dictates its processing methods, performance characteristics, and application fields. From the lightweight and tough continuous fibers to the easily moldable chopped fibers, each form opens up possibilities for innovation across different sectors. The first step to correctly selecting carbon fiber is understanding the distinctions between these core forms.

Carbon fiber is primarily produced from polyacrylonitrile (PAN) precursor fibers through processes like high-temperature carbonization. Based on the final product length and subsequent processing forms, it can be mainly categorized into the following types:

1.Continuous Carbon Fiber: The Synonym for High Performance
Continuous carbon fiber refers to high-performance filaments that can be kilometers long, typically wound onto spools as yarn or tow. Each tow consists of 1,000 (1K), 3,000 (3K), 12,000 (12K), or even more individual filaments. A lower K number generally indicates better weaveability, suitable for complex curves; a higher K number offers higher layup efficiency, ideal for large-scale structures.

Performance Characteristics: Retains the highest strength and modulus of carbon fiber, offering exceptional mechanical properties (e.g., grades like T300, T700, T800). It is highly anisotropic, meaning its performance heavily depends on the fiber orientation. Designers can precisely meet mechanical requirements in specific directions through ply design.

Application Fields:
→ Aerospace: Wing and fuselage structures, satellite components, UAV arms.
→ High-end Sports Equipment: Bicycle frames, tennis rackets, fishing rods, racing boats.
→ Industrial & Energy: Wind turbine blade spars, hydrogen storage cylinders, robotic arms, lightweight rollers.

Market Positioning: Belongs to the high-end market with high technical barriers and a correspondingly higher price, ranging from tens to hundreds of dollars per kilogram (depending on grade). As costs optimize, it's gradually penetrating areas like high-end automotive components (e.g., battery boxes).

2. Long Carbon Fiber: The Reinforcement Powerhouse for Thermoplastics
Long carbon fiber (LCF) typically refers to fibers several millimeters to tens of millimeters in length, primarily used for reinforcing thermoplastic polymers, maintaining some orientation and length within the pellets.

Performance Characteristics: Offers superior impact strength, stiffness, and fatigue resistance significantly better than chopped fibers due to better fiber length retention during injection molding, forming a three-dimensional network structure. Properties are more balanced compared to continuous fiber, though some anisotropy remains.

Application Fields:
→ Automotive Components: Engine covers, seat frames, battery trays.
→ Electronics & Electrical: Laptop casings, UAV bodies, sensor housings.
→ Consumer Goods: Power tool housings, sports equipment accessories.

Market Positioning: A rapidly growing segment that balances high performance with rapid processing capabilities, particularly suitable for automotive lightweighting and consumer electronics.

3. Chopped Carbon Fiber: The Star Filler for Modified Plastics
Chopped carbon fiber, typically 0.1–12 mm in length (common length 6mm), appears rice-grain or cylindrical and is used for blending and modifying thermoplastic resins.

Performance Characteristics: Provides isotropic properties due to random distribution within the matrix. It functionally enhances the base material's strength, stiffness, wear resistance, electrical/thermal conductivity, and dimensional stability. Offers excellent processing flowability.

Application Fields:
→ Engineering Plastics: Added to Nylon (PA66, PA6), PPA, PP, PC, PPS, PEEK, LCP, etc., to create reinforced, anti-static, and wear-resistant components.
→ Friction Materials: Brake pads, clutch plates.
→ Functional Materials: Conductive coatings/inks, concrete reinforcement (reducing cracking, increasing tensile strength).

Market Positioning: One of the lowest-cost, highest-volume forms, a somewhat "commoditized" carbon fiber product. Driven by broad demand across industrial and consumer sectors.

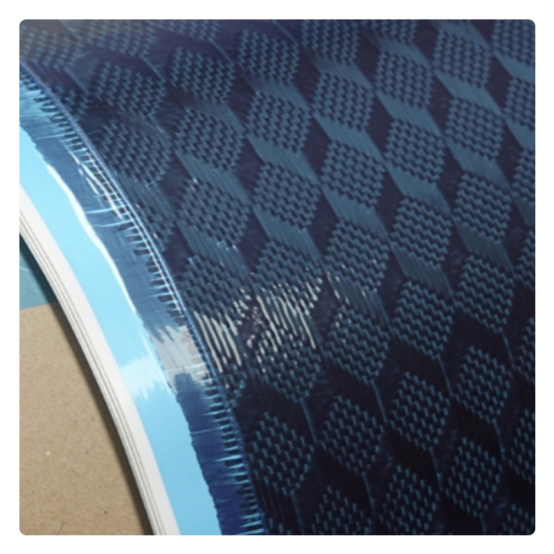

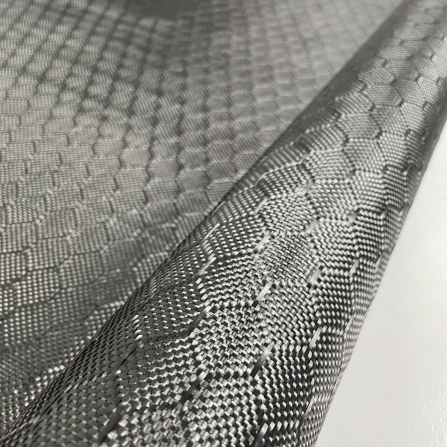

4. Carbon Fiber Fabric: The Skeleton of Composites
This is a two-dimensional structure made by weaving continuous carbon fiber tows using textile techniques, a key intermediate form of continuous fiber. It includes woven fabrics like plain, twill, and satin weaves, as well as non-crimp unidirectional (UD) fabrics. In UD fabrics, the vast majority of fibers are aligned parallel in one direction, stitched lightly in the 90° direction, offering performance in that primary direction close to that of the continuous fiber itself.

Performance Characteristics: Different weaves balance drapeability, stability, and mechanical properties. Facilitates easy ply layup for composite manufacturing, especially for processes like hand lay-up, vacuum bagging, and autoclave curing. Enables precise design of structural mechanical properties through multi-directional layup.

Application Fields: Aircraft skins, fairings; robotic arms; medical imaging table boards; UAV airframes; automotive body panels.

5. Carbon Fiber Prepreg: The Choice for High-Quality Processes
This is an intermediate material where continuous carbon fiber tows or fabrics are pre-impregnated with a partially cured resin system.

Performance Characteristics: Simplifies the process for the user by eliminating the need for separate resin handling and impregnation. Requires only cutting, layup, and then curing under heat and pressure. Offers high and consistent quality, with precise fiber content control. Carries a higher cost due to the resin system and complex preparation process. Requires refrigerated storage.

Application Fields: High-end bicycle frames, rackets, skis; aerospace secondary structures (e.g., interior panels, brackets); high-performance automotive parts.
